Ralph Sutter's Raspberry Pi Notes
Linux SIG - 02/11/16

NOTE: This document is available as a .docx file at www.fullbean.com/linux/raspberry-pi.docx

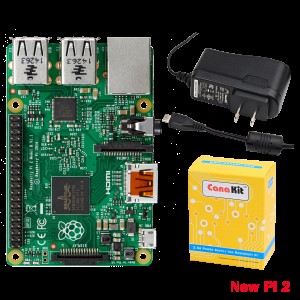

Raspberry Pi 2 Basic StarterKit
$44.99 from Amazon

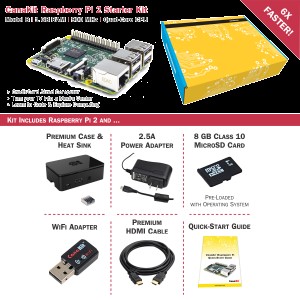

Raspberry Pi 2 Complete Starter Kit
$69.99 from Amazon

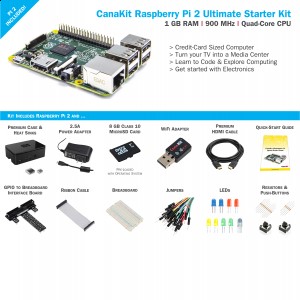

Raspberry Pi 2 - Ultimate Starter Kit
$84.99 from Amazon






Kit Includes:
1 x Raspberry Pi 2 (RPi2) Model B Quad-Core 900 MHz with 1 GB RAM
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x CanaKit Quick-Start Guide
Kit Includes:
1 x Raspberry Pi 2 (RPi2) Model B Quad-Core 900 MHz with 1 GB RAM
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x CanaKit Quick-Start Guide
Kit Includes:
1 x Raspberry Pi 2 (RPi2) Model B Quad-Core 900 MHz with 1 GB RAM
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x CanaKit Quick-Start Guide
  1 x 8 GB SD Card - Raspberry Pi SD Card pre-loaded with NOOBS (Class 10)
1 x CanaKit WiFi Adapter 150 Mbps - Supports Access Point Mode (AP) to allow for WiFi Hotspot hosting
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x High Quality Raspberry Pi 2 Case,
1 x Premium Quality HDMI Cable,
2 x Heat Sinks
1 x GPIO Quick Reference Card
1 x 8 GB SD Card - Raspberry Pi SD Card pre-loaded with NOOBS (Class 10)
1 x CanaKit WiFi Adapter 150 Mbps - Supports Access Point Mode (AP) to allow for WiFi Hotspot hosting
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x High Quality Raspberry Pi 2 Case,
1 x Premium Quality HDMI Cable,
2 x Heat Sinks
1 x GPIO Quick Reference Card
      1 x 8 GB SD Card - Raspberry Pi SD Card pre-loaded with NOOBS (Class 10)
1 x CanaKit WiFi Adapter 150 Mbps - Supports Access Point Mode (AP) to allow for WiFi Hotspot hosting
1 x CanaKit 2.5A USB Power Supply with Micro USB Cable and Noise Filter - Specially designed for the Raspberry Pi 2 (UL Listed)
1 x High Quality Raspberry Pi 2 Case,
1 x Premium Quality HDMI Cable,
2 x Heat Sinks
1 x GPIO Quick Reference Card
1 x Breadboard
1 x 40-pin GPIO Ribbon Cable
1 x 40-pin T-Shaped GPIO to Breadboard Interface Board
2 x Push Button Switches
1 x RGB LED
2 x Red LEDs
2 x Green LEDs
2 x Yellow LEDs
2 x Blue LEDs
10 x 180 Ohm Resistors
5 x 10K Ohm Resistors

Common specs for all of the listed Raspberry P1 2 Model B kits

900MHz quad-core ARM Cortex-A7 CPU
1GB RAM
4 USB ports
40 GPIO pins
Full HDMI port
Ethernet port
Combined 3.5mm audio jack and composite video
Camera interface (CSI)
Display interface (DSI)
Micro SD card slot
VideoCore IV 3D graphics core

---

I purchased the Raspberry Pi 2 Complete Starter Kit
http://www.amazon.com/gp/product/B008XVAVAW/ref=s9_al_bw_g147_i3

I also bought the following items

Raspberry Pi 8GB Preloaded (NOOBS) SD Card
$11.78
http://www.amazon.com/gp/product/B00ENPQ1GK

Inateck Bluetooth 4.0 USB Wireless Bluetooth Dongle $9.99
http://www.amazon.com/gp/product/B00N2E3ZHG

1byone WireWireless Bluetooth Keyboard with built-in multi-touch touchpad $22.99
http://www.amazon.com/gp/product/B00VRC6D3S

Because it has an ARMv7 processor, it can run the full range of ARM GNU/Linux distributions, including Snappy Ubuntu Core, as well as Microsoft Windows 10

Useful links
Raspberry Pi on Wikipedia: https://en.wikipedia.org/wiki/Raspberry_Pi
Raspberry Pi Opening Page: https://www.raspberrypi.org/
Canakit: http://www.canakit.com/ - This is a retail site for purchasing Raspberry Pi related products

NOOBS Operating System Download Page: https://www.raspberrypi.org/help/noobs-setup/
Additional Operating Systems Download Site: https://www.raspberrypi.org/downloads/

OpenELEC Documentation: - Covers installation of Openelec on multiple operating systems
http://wiki.openelec.tv/index.php?title=Installation

Installing OpenELEC on Raspberry Pi: http://wiki.openelec.tv/index.php/Raspberry_Pi
The above URL contains a link to the site listed below

HOW-TO:Installing OpenELEC/Writing The Disk Image:
http://wiki.openelec.tv/index.php/HOW-TO:Installing_OpenELEC/Writing_The_Disk_Image#tab=Windows



RASPBERRY PI LINKS
FORMATTING AN SDXC CARD FOR USE WITH NOOBS - Instructions here
https://www.raspberrypi.org/documentation/installation/sdxc_formatting.md

NOTE: If your SD card is 32Gb or larger, Windows formats it as exFAT. Raspberry Pi doesn't understand that configuration and must be formatted as FAT32
SOLUTION

Insert SD card and download SD Formatter
https://www.sdcard.org/downloads/formatter_4/

Format the SD card with FORMAT SIZE ADJUSTMENT set to ON

Download FAT32 Format (which downloads as a single file named guiformat.exe)
http://www.ridgecrop.demon.co.uk/index.htm?guiformat.htm

Using guiformat.exe, format the SD card to FAT32

Download NOOBS from https://www.raspberrypi.org/downloads, choosing NOOBS from the operating systems offered

Extract NOOBS to a folder and paste the contents of the folder to the SD card

Run NOOBS, following the instructions at
https://www.raspberrypi.org/documentation/installation/noobs.md

You will be offered a one-time menu that offers to install any one of the following operating systems on your Raspberry Pi
    Raspbian
    Pidora
    OpenELEC
    OSMC
    RISC OS
    Arch Linux

I chose OpenELEC. Setup instructions for that OS are found at
http://wiki.openelec.tv/index.php?title=Raspberry_Pi_FAQ and
http://wiki.openelec.tv/index.php/HOW-TO:Installing_OpenELEC/Writing_The_Disk_Image

Offer to do a live install of OpenELEC

DEMO OpenELEC on my Raspberry Pi showing
Network setup/WiFi Setup
Bluetooth keyboard setup
Content creation

Demo Music/Video/Pictures from attached Flash Drive (Mushkin)
Slideshow options and Playlists

Unsolved items
How do I create a single slideshow with files in more than one folder?
Is it possible to display .doc or .html files inside Kodi?
